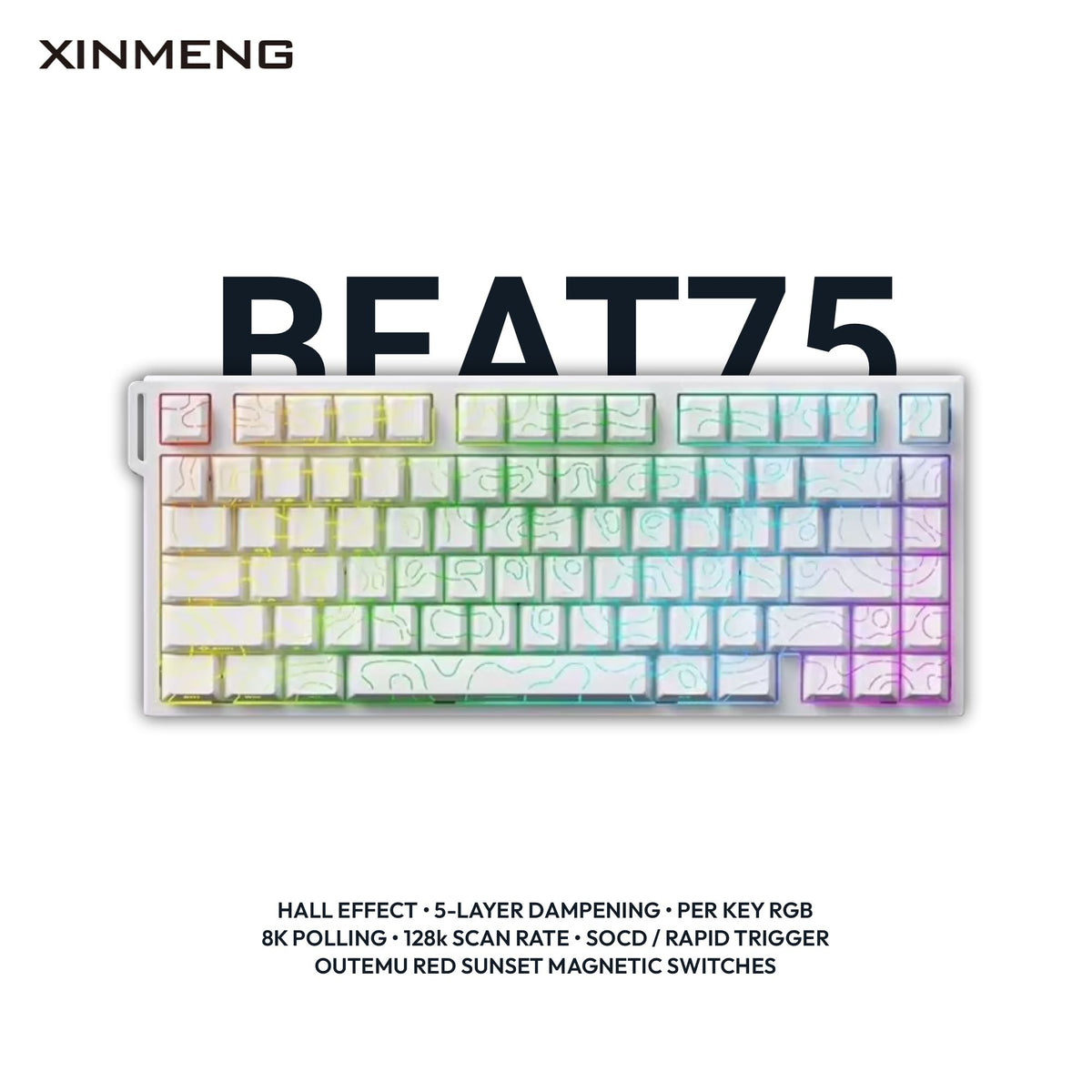

Xinmeng Beat75 Pro 75% Hall Effect Keyboard – Wired, Rapid Trigger, 5-Layer Dampening & 0.005mm RT | Outemu Red Sunset
Xinmeng Beat75 Pro 75% Hall Effect Keyboard – Wired, Rapid Trigger, 5-Layer Dampening & 0.005mm RT | Outemu Red Sunset
Couldn't load pickup availability
Downloads
Downloads
Access the software and more at Nerdy Nest's driver center.
Shipping & Payment
Shipping & Payment
📦Standard Order Processing Steps
- You place an order on the website.
- Advance payment has to be made. (We no longer offer cash on delivery.)
- Share the transaction screenshot on our WhatsApp.
- We'll test (where applicable) and package the item(s) on camera. These recordings will be shared with you.
- We'll ship the product via TCS and the tracking code will be shared with you by the system via email. (Even for deliveries within Lahore, we use TCS.)
- Once you receive the order, please record an unboxing to ensure the package is not tampered by anyone during delivery. This also protects you as a customer.
Payments have to be done via Bank Transfer to one of our accounts. Once you check out, you'll be shown where to make the payment.
Warranty Policy
Warranty Policy
Warranty depends on the brand and the product itself. Read up on the detailed policy here.
A 75% wired Hall Effect keyboard with a fiberglass non-magnetic plate, five-layer dampening, 0.005mm Rapid Trigger, and 45gf Outemu Red Sunset switches — the acoustically refined top of the Beat75 platform.
Read the full description
The Xinmeng Beat75 Pro is a 75% Hall Effect mechanical keyboard that pushes the technical ceiling of its category. Built around a fiberglass non-magnetic positioning plate, a five-layer sound dampening stack, and a 1.6mm non-slotted PCBA, it's designed for anyone who wants the most acoustically refined and input-precise Hall Effect board at its price point — without making layout or build concessions to get there.
The headline spec is its 0.005mm Rapid Trigger accuracy, a figure that places it among the most precise Hall Effect keyboards on the market. Paired with a 128,000Hz scan rate and 8000Hz polling, the board captures and transmits input at a speed effectively imperceptible in latency terms. The full competitive HE suite — Rapid Trigger, SOCD, DKS, MT, TGL, and per-key adjustable actuation — gives players and power users the complete toolkit to configure every key exactly as needed. The fiberglass plate matters here too: being non-magnetic, it avoids interference with the Hall Effect sensors, keeping the magnetic field readings that underpin every keypress clean and accurate.
The switch of choice is the Outemu Red Sunset Magnetic — a linear Hall Effect switch with 45gf operating force, 3.5mm total travel, and a POM stem in a PC-upper / PA66-bottom housing. It's built with a light guide column for clean RGB pass-through and uses an N-pole-down magnet with a calibrated 95GS–580GS flux range for a wide, accurate sensing window across the full keystroke. The result is a smooth, consistent linear feel that pairs well with the board's precision sensing.
Where the Beat75 Pro most distinguishes itself is its five-layer dampening architecture: silicone base pad, case foam, PET film, IXPE switch pad, and silicone plate foam. Each layer targets a different resonance point — from base vibration through to switch-level impact — building toward a sound profile that's controlled, thocky, and notably dead in the best sense of the word. The non-slotted 1.6mm PCBA adds a stiffer, more uniform key feel with reduced flex variance between positions. For a 75% wired Hall Effect board with this level of factory tuning, the Beat75 Pro is a serious, well-engineered option.
🌟 Key Features
- 0.005mm Rapid Trigger Accuracy — Among the finest RT precision available in the Hall Effect category
- 128,000Hz Scan Rate / 8K Polling — Ultrafast input capture and transmission for near-zero latency response
- Five-Layer Sound Dampening — Silicone base pad + case foam + PET film + IXPE switch pad + silicone plate foam for a deeply controlled, resonance-free profile
- Fiberglass Non-Magnetic Plate — Eliminates magnetic interference with the HE sensors for cleaner, more accurate detection
- 1.6mm Non-Slotted PCBA — Stiffer board structure for a more uniform key feel and reduced flex across the layout
- Full HE Feature Suite — SOCD, Rapid Trigger, DKS, MT, TGL, and per-key adjustable actuation
- Outemu Red Sunset Magnetic Switches — Linear HE switches with 45gf force, POM stem, PC/PA66 housing, and a built-in light guide column
- Wide Magnetic Flux Range (95GS–580GS) — Broad sensing window across full travel for accurate, consistent HE detection
- 75% Layout — Full function row, arrow cluster, and a compact footprint — practical for gaming and productivity alike
- Detachable USB-C Cable — Clean wired connection with reliable everyday routing
⚙️ Specifications
| Brand | Xinmeng |
| Model | Beat75 Pro |
| Layout | 75% |
| Connectivity | Wired — USB-C Detachable |
| Polling Rate | 8000Hz |
| Scan Rate | 128,000Hz |
| RT Accuracy | 0.005mm |
| Positioning Plate | Fiberglass (Non-Magnetic) |
| PCBA | 1.6mm Non-Slotted |
| Dampening Layers | 5 (Silicone Base Pad + Case Foam + PET Film + IXPE Switch Pad + Silicone Plate Foam) |
| HE Features | SOCD, Rapid Trigger, DKS, MT, TGL, Adjustable Actuation |
| Switch | Outemu Red Sunset Magnetic |
| Switch Type | Linear — Hall Effect |
| Operating Force | 45gf |
| Total Travel | 3.5mm |
| Flux Range | 95GS (Initial) – 580GS (Bottom) |
| Switch Housing | PC Upper / PA66 Bottom |
| Switch Stem | POM |
| Magnet Orientation | N Pole Facing Down |
| Light Guide Column | Yes |
| Box Contents | Keyboard, 2-in-1 Puller, USB-C Cable, Spare Switches, 3× Straps, 6× Spare Keycaps (Assorted Colours) |
🎯 Perfect For
- Competitive gamers who demand the highest available Rapid Trigger precision and scan rate in a 75% layout
- Enthusiast builders who want a fully dampened, factory-tuned Hall Effect board without post-purchase modding
- Users who prefer a 75% layout for the balance of compactness and key accessibility, function row and arrows included
- Anyone stepping up from a standard Hall Effect board who wants a meaningful upgrade in both build quality and input accuracy
