A 75% wired Hall Effect keyboard with a fiberglass non-magnetic plate, five-layer dampening, 0.005mm Rapid Trigger, and light 40gf Outemu White Jade switches with fully transparent PC housing for clean RGB.
Read the full description

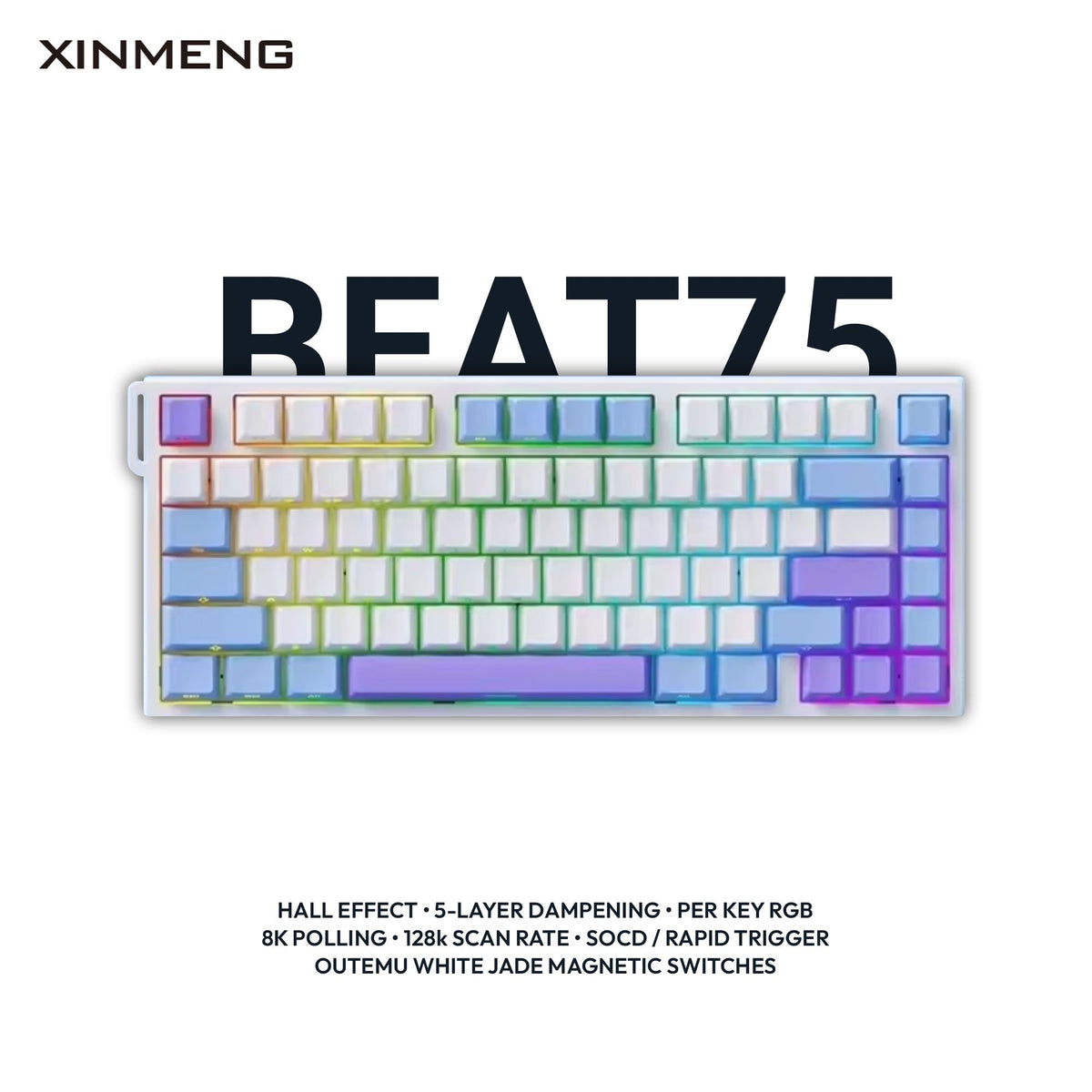

The Xinmeng Beat75 Lite is a 75% wired Hall Effect mechanical keyboard that delivers the same core technical architecture as the Beat75 Pro — fiberglass non-magnetic plate, five-layer dampening stack, 0.005mm Rapid Trigger accuracy, and a 128,000Hz scan rate — in a configuration tuned around a lighter, smoother switch feel. It's the natural pick for anyone who wants everything the Beat75 platform offers in build quality and input precision, but prefers a lower actuation force and a fully transparent switch housing for cleaner RGB.
The switch is the Outemu White Jade Magnetic — widely known in the community as Tiger Amber Pro — a linear Hall Effect switch with 40gf operating force, 3.5mm total travel, and full PC (polycarbonate) housing top and bottom. The all-PC construction makes the White Jade one of the more RGB-transparent HE switches available, and the built-in light guide column further ensures even, clean backlight diffusion through the keycap. The POM stem delivers the characteristically smooth, low-friction linear feel the White Jade is known for, and the N-pole-down magnet with a 95GS–580GS flux range provides a wide, accurate sensing window across the full travel depth.
The underlying platform is identical to the Beat75 Pro and represents a serious engineering investment for the category. The 1.6mm non-slotted PCBA gives the board a stiff, uniform key feel with minimal flex between positions, while the fiberglass non-magnetic plate ensures no magnetic interference with the Hall Effect sensors — a detail cheaper boards with metal plates can compromise on. The five dampening layers — silicone base pad, case foam, PET film, IXPE switch pad, and silicone plate foam — each address a distinct resonance point, building toward a controlled, thocky sound profile that needs no additional modding to appreciate.
The full HE feature set is present and accessible: Rapid Trigger at 0.005mm resolution, SOCD, DKS, MT, TGL, and per-key adjustable actuation, all configured via the web driver. For a 75% Hall Effect board that combines sub-0.01mm RT precision, factory-level acoustic tuning, and a light, smooth linear switch in one package, the Beat75 Lite is a well-positioned, high-value build.
🌟 Key Features
- 0.005mm Rapid Trigger Accuracy — Industry-leading RT precision for the most responsive, competitive-grade input configuration
- 128,000Hz Scan Rate / 8K Polling — Ultrafast input capture and transmission across all keys with near-zero effective latency
- Five-Layer Sound Dampening — Silicone base pad + case foam + PET film + IXPE switch pad + silicone plate foam for a deeply controlled, resonance-free profile
- Fiberglass Non-Magnetic Plate — Eliminates magnetic interference with the HE sensors for clean, accurate detection across the full layout
- 1.6mm Non-Slotted PCBA — Stiffer board structure for a uniform key feel with reduced flex variance across positions
- Full HE Feature Suite — SOCD, Rapid Trigger, DKS, MT, TGL, and per-key adjustable actuation
- Outemu White Jade Magnetic Switches (Tiger Amber Pro) — Light 40gf linear HE switches with POM stem, full PC housing, and a built-in light guide column for clean RGB
- All-PC Switch Housing — Fully transparent housing maximises RGB backlight visibility and diffusion through the keycap
- Wide Magnetic Flux Range (95GS–580GS) — Broad sensing window across full travel for accurate, consistent HE detection
- 75% Layout — Retains function row and arrow cluster in a compact, desk-friendly footprint for gaming and daily use
- Detachable USB-C Cable — Clean, reliable wired connection with easy cable routing
⚙️ Specifications
| Brand | Xinmeng |
| Model | Beat75 Lite |
| Layout | 75% |
| Connectivity | Wired — USB-C Detachable |
| Polling Rate | 8000Hz |
| Scan Rate | 128,000Hz |
| RT Accuracy | 0.005mm |
| Positioning Plate | Fiberglass (Non-Magnetic) |
| PCBA | 1.6mm Non-Slotted |
| Dampening Layers | 5 (Silicone Base Pad + Case Foam + PET Film + IXPE Switch Pad + Silicone Plate Foam) |
| HE Features | SOCD, Rapid Trigger, DKS, MT, TGL, Adjustable Actuation |
| Switch | Outemu White Jade Magnetic (Tiger Amber Pro) |
| Switch Type | Linear — Hall Effect |
| Operating Force | 40gf |
| Total Travel | 3.5mm |
| Flux Range | 95GS (Initial) – 580GS (Bottom) |
| Switch Housing | Full PC (PC Upper / PC Bottom) |
| Switch Stem | POM |
| Magnet Orientation | N Pole Facing Down |
| Light Guide Column | Yes |
| Box Contents | Keyboard, 2-in-1 Puller, USB-C Cable, Spare Switches, 3× Straps, 6× Spare Keycaps (Assorted Colours) |
🎯 Perfect For
- Competitive gamers who want 0.005mm RT precision and a lighter 40gf switch feel in a 75% layout
- RGB-focused builders who want a transparent PC switch housing for maximum backlight output and even diffusion
- Enthusiast typists who prefer a lower actuation-force linear for extended daily use without finger fatigue
- Anyone stepping into the Beat75 platform who wants the full technical spec at a lighter, more accessible actuation weight
