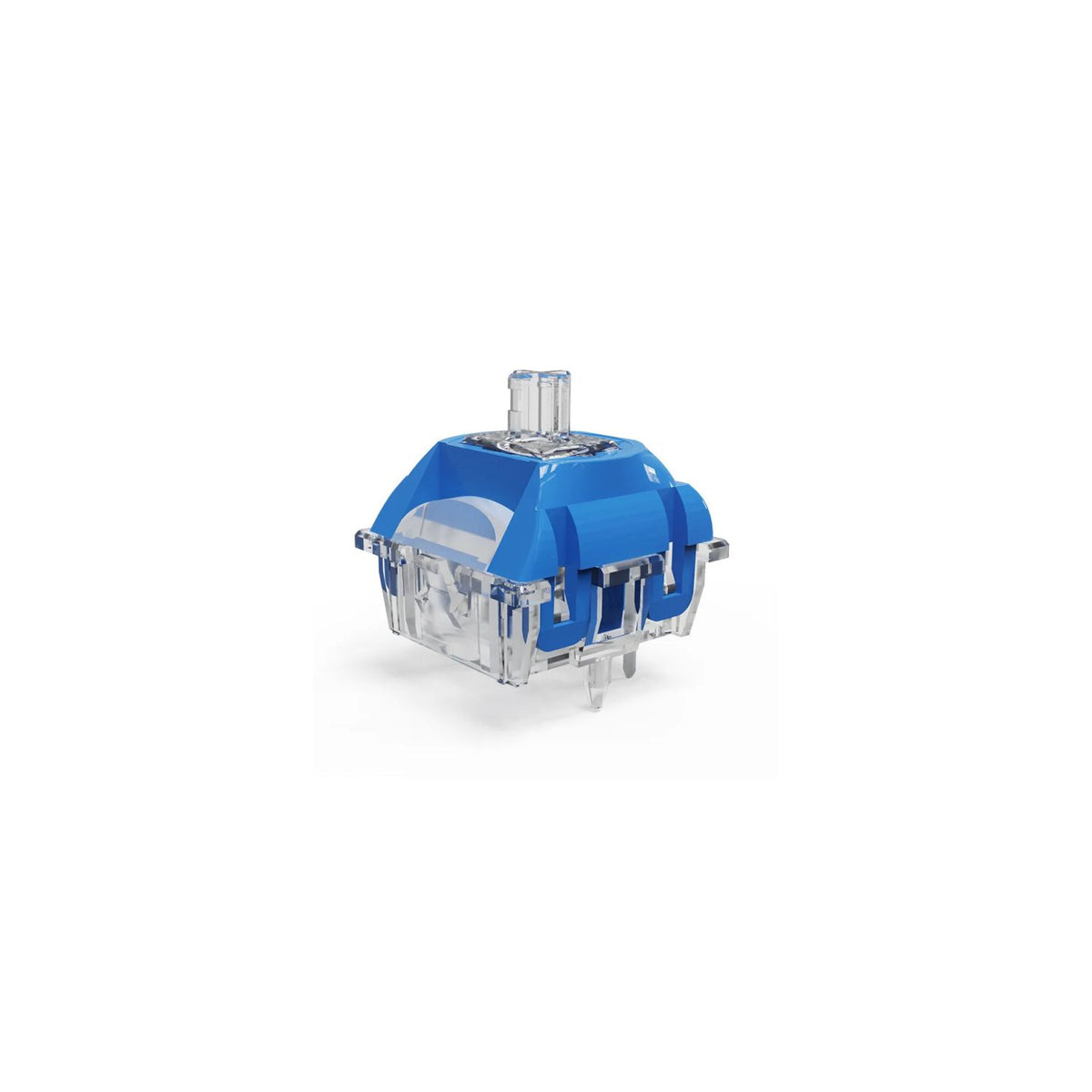

TTC Neptune Linear Switches – Smooth Silky Linear with Long-Rail Stem & 21.5mm Spring | 5-Pin, Pack of 10
TTC Neptune Linear Switches – Smooth Silky Linear with Long-Rail Stem & 21.5mm Spring | 5-Pin, Pack of 10
Couldn't load pickup availability
Downloads
Downloads
Access the software and more at Nerdy Nest's driver center.
Shipping & Payment
Shipping & Payment
📦Standard Order Processing Steps
- You place an order on the website.
- Advance payment has to be made. (We no longer offer cash on delivery.)
- Share the transaction screenshot on our WhatsApp.
- We'll test (where applicable) and package the item(s) on camera. These recordings will be shared with you.
- We'll ship the product via TCS and the tracking code will be shared with you by the system via email. (Even for deliveries within Lahore, we use TCS.)
- Once you receive the order, please record an unboxing to ensure the package is not tampered by anyone during delivery. This also protects you as a customer.
Payments have to be done via Bank Transfer to one of our accounts. Once you check out, you'll be shown where to make the payment.
Warranty Policy
Warranty Policy
Warranty depends on the brand and the product itself. Read up on the detailed policy here.
A smooth, silky light 41gf linear with TTC's long guide-rail stem for wobble-free travel, a lengthened 21.5mm spring, and POM-on-POM contact — factory-lubed and sorted straight out of the box.
Read the full description
The TTC Neptune is a 5-pin linear switch built for a smooth, silky keystroke straight out of the box. With a light 41gf operating force and a 2.0mm actuation point, it's an easy-going linear suited to fast gaming inputs and relaxed, low-effort typing alike — a well-rounded pick for anyone after an effortless feel without a heavy press.
The standout is TTC's long guide-rail stem structure (marketed as the "high-speed rail" design), which lengthens the stem's contact track versus a standard switch for steadier, wobble-free travel along the full stroke. Paired with a lengthened 21.5mm spring, the return is springy and consistent across the 3.8mm total travel, with a clean reset that keeps rapid presses feeling crisp.
Materially, the Neptune runs a POM stem and POM top housing over a polycarbonate bottom. The POM-on-POM contact gives the switch its characteristic smoothness, while the PC bottom lends a slightly rounded, controlled sound rather than a sharp, high pitch. Factory lubrication is applied from the start, so there's no scratch to break in — these feel sorted the moment they're installed. The transparent housing also lets per-key RGB shine through cleanly.
Rated for 100 million keystrokes, the Neptune is a durable, no-fuss linear that lands well for both first-time switch swappers and enthusiasts who want a smooth stock option without lubing.
🌟 Key Features
- Light 41gf Linear — Easy, low-effort keystroke for gaming and typing
- Long Guide-Rail Stem — TTC's extended rail structure for stable, wobble-free travel
- Lengthened 21.5mm Spring — Springy, consistent return with a clean reset
- POM Stem + POM Top / PC Bottom — Silky-smooth contact with a rounded, controlled sound
- Factory Lubed — Smooth from the first press, no break-in needed
- Transparent Housing — Clean per-key RGB shine-through
- 100M Keystroke Lifespan — Durable for long-term daily use
- 5-Pin (PCB-Mount) — Stable fit on hot-swap and soldered PCBs
⚙️ Specifications
| Brand | TTC |
| Model | Neptune |
| Type | Linear |
| Pins | 5-Pin (PCB-Mount) |
| Operating Force | 41gf |
| Pre-Travel | 2.0mm |
| Total Travel | 3.8mm |
| Spring | Lengthened 21.5mm |
| Top Housing | POM |
| Bottom Housing | Polycarbonate (PC) |
| Stem | POM |
| Lubrication | Factory-Lubed |
| Lifespan | 100 Million Keystrokes |
| Pack Size | 10 Switches |
📦 How Many Do I Need?
Switches are sold in packs of 10. As a rough guide: a 60/65% board needs ~68 switches (7 packs), a 75% ~84 (9 packs), a TKL ~87 (9 packs), and a full-size ~104 (11 packs). Buy a pack or two extra if you want spares.
✅ Genuine TTC
Sourced directly from TTC / official distribution — these are genuine TTC Neptune switches, not clones or relabels.
🎯 Perfect For
- Gamers wanting a light, fast linear with a stable, consistent stroke
- Typists after a smooth, silky feel without lubing switches themselves
- Builders who want a clean stock linear with strong RGB shine-through
- First-time switch swappers looking for an easy, reliable upgrade
