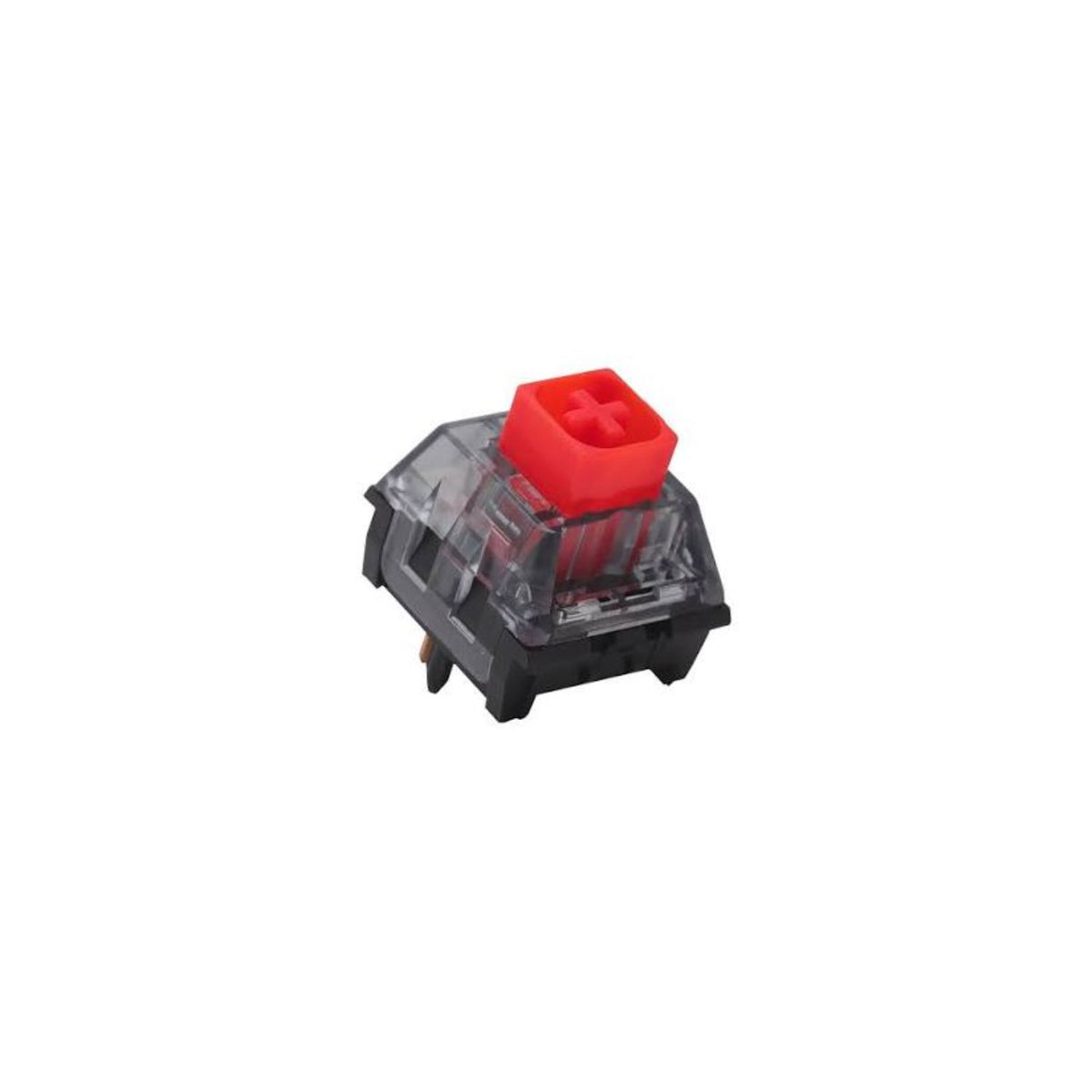

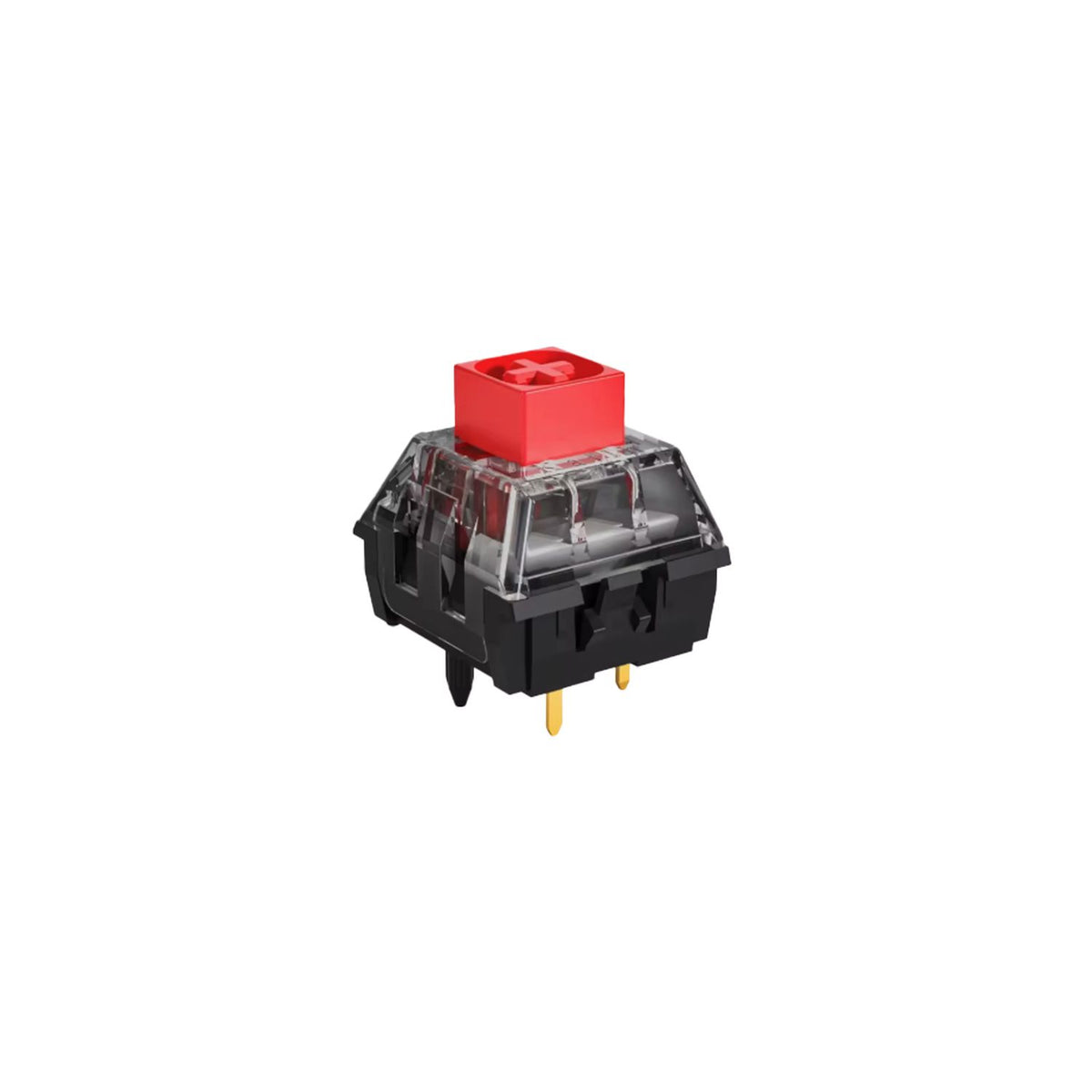

Kailh Box Red V2 Switches – Smooth Light Linear with Box Stem & IP54 Dust/Moisture Resistance | 5-Pin, Pack of 10
Kailh Box Red V2 Switches – Smooth Light Linear with Box Stem & IP54 Dust/Moisture Resistance | 5-Pin, Pack of 10
Couldn't load pickup availability
Downloads
Downloads
Access the software and more at Nerdy Nest's driver center.
Shipping & Payment
Shipping & Payment
📦Standard Order Processing Steps
- You place an order on the website.
- Advance payment has to be made. (We no longer offer cash on delivery.)
- Share the transaction screenshot on our WhatsApp.
- We'll test (where applicable) and package the item(s) on camera. These recordings will be shared with you.
- We'll ship the product via TCS and the tracking code will be shared with you by the system via email. (Even for deliveries within Lahore, we use TCS.)
- Once you receive the order, please record an unboxing to ensure the package is not tampered by anyone during delivery. This also protects you as a customer.
Payments have to be done via Bank Transfer to one of our accounts. Once you check out, you'll be shown where to make the payment.
Warranty Policy
Warranty Policy
Warranty depends on the brand and the product itself. Read up on the detailed policy here.
A light 40gf linear with Kailh's Box stem — enclosed for stability and reduced wobble, with genuine IP54 dust and moisture resistance. Factory-lubed, smooth out of the box, and rated for 80M clicks.
Read the full description
The Kailh Box Red V2 delivers precision and consistency in a 5-pin linear switch built for gamers, typists, and keyboard enthusiasts. A smooth keypress with a light 40gf operating force makes it well suited to both rapid inputs and long typing sessions.
The defining feature is Kailh's Box Stem — the enclosed stem design improves stability, reduces wobble, and brings IP54-rated dust and moisture resistance, giving the switch durability even in tougher environments (a genuine point of difference from standard open-stem switches). Each switch is factory-lubricated for a smoother press out of the box, minimising friction and improving overall feel.
At 40gf actuation and 50gf bottom-out across 1.8mm pre-travel and 3.6mm total travel, the Box Red V2 sits in a light, comfortable range with a balanced feel for both gaming and typing. With a rated 80-million-keystroke lifespan, it combines performance, reliability, and longevity — a strong pick whether you're building your first custom keyboard or upgrading an existing one.
🌟 Key Features
- Linear Switch — Smooth, consistent keystrokes
- Box Stem Technology — Enclosed stem for enhanced stability and reduced key wobble
- IP54 Dust & Moisture Resistance — Added durability against dust and liquid ingress
- Light 40gf Operating Force — Lightweight actuation for fast input and low fatigue
- Factory Lubricated — Smoother keystrokes straight out of the box
- 80M-Click Rated Lifespan — Built for long-term reliability
- 5-Pin Compatible — Fits 5-pin hot-swap and soldered PCBs
⚙️ Specifications
| Brand | Kailh |
| Model | Box Red V2 |
| Switch Type | Linear |
| Pin Count | 5-Pin |
| Operating Force | 40 ±10gf |
| Bottom-Out Force | 50gf |
| Rebound Force | ≥15gf |
| Pre-Travel | 1.8mm ±0.4mm |
| Total Travel | 3.6mm ±0.3mm |
| Stem | Box Stem — POM |
| Top Housing | PC (Polycarbonate) — Translucent Black |
| Bottom Housing | Nylon — Solid Black |
| Contact Pins | Composite Gold Metal |
| Spring | 19mm Gold-Plated Steel |
| Protection Rating | IP54 (Dust & Moisture Resistant) |
| Lubrication | Factory Lubricated |
| Rated Life | 80M Clicks |
| Pack Size | 10 Switches |
📦 How Many Do I Need?
Switches are sold in packs of 10. As a rough guide: a 60/65% board needs ~68 switches (7 packs), a 75% ~84 (9 packs), a TKL ~87 (9 packs), and a full-size ~104 (11 packs). Buy a pack or two extra if you want spares.
✅ Genuine Kailh
Sourced directly from Kailh / official distribution — these are genuine Kailh Box Red V2 switches, not clones or relabels.
🎯 Perfect For
- Gamers who want light, fast linear actuation with a stable keystroke
- Typists after a smooth, low-fatigue switch for long sessions
- Builders who want the dust/moisture resistance of a Box stem for a more durable board
- First-time builders and upgraders after a reliable, factory-lubed linear
