A 65% wired Hall Effect keyboard at the budget entry point — factory-lubed Philikey magnetic switches, the full HE feature suite via a no-install web driver (Mac/Linux friendly), well-tuned stabs, and honest ABS build.
Read the full description

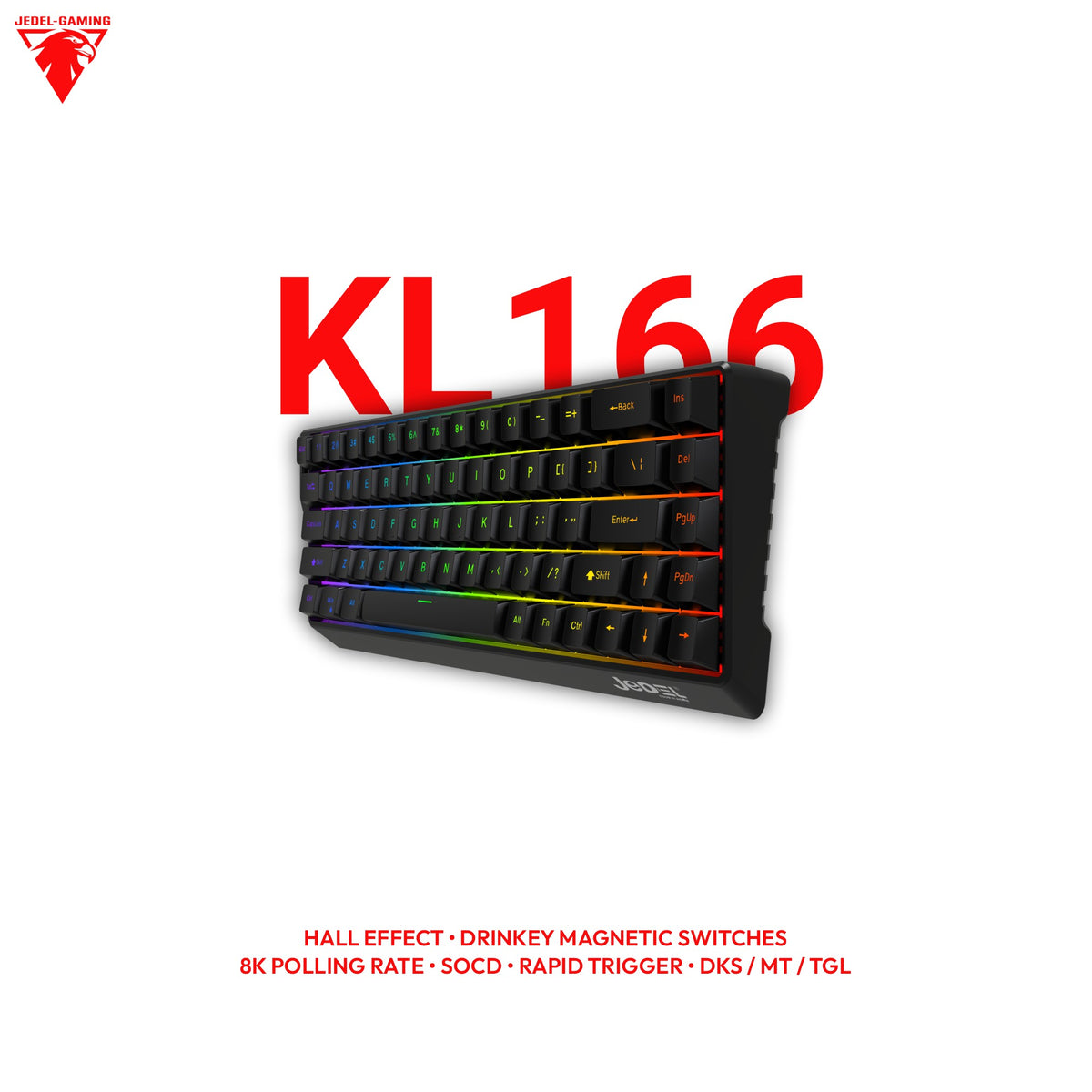

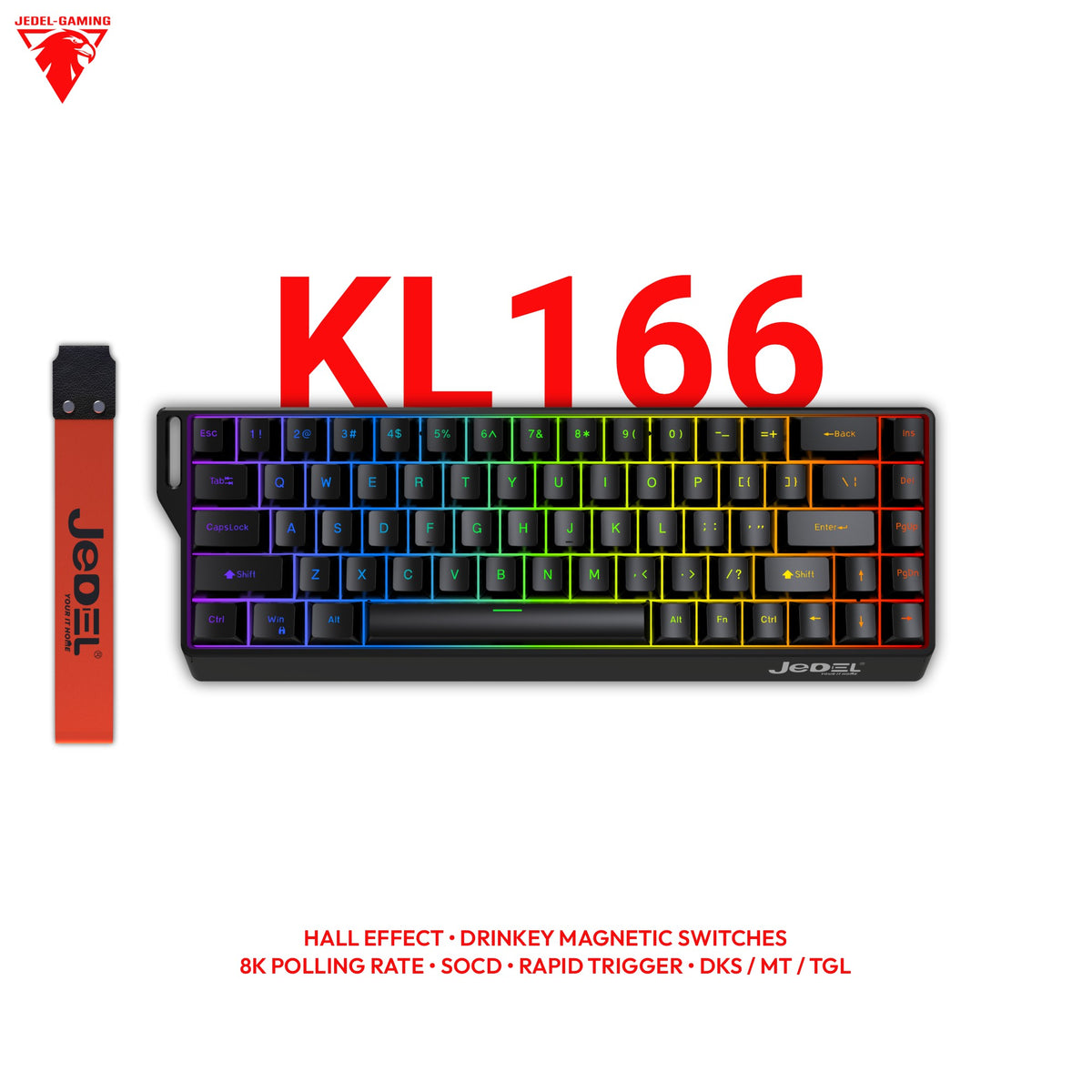

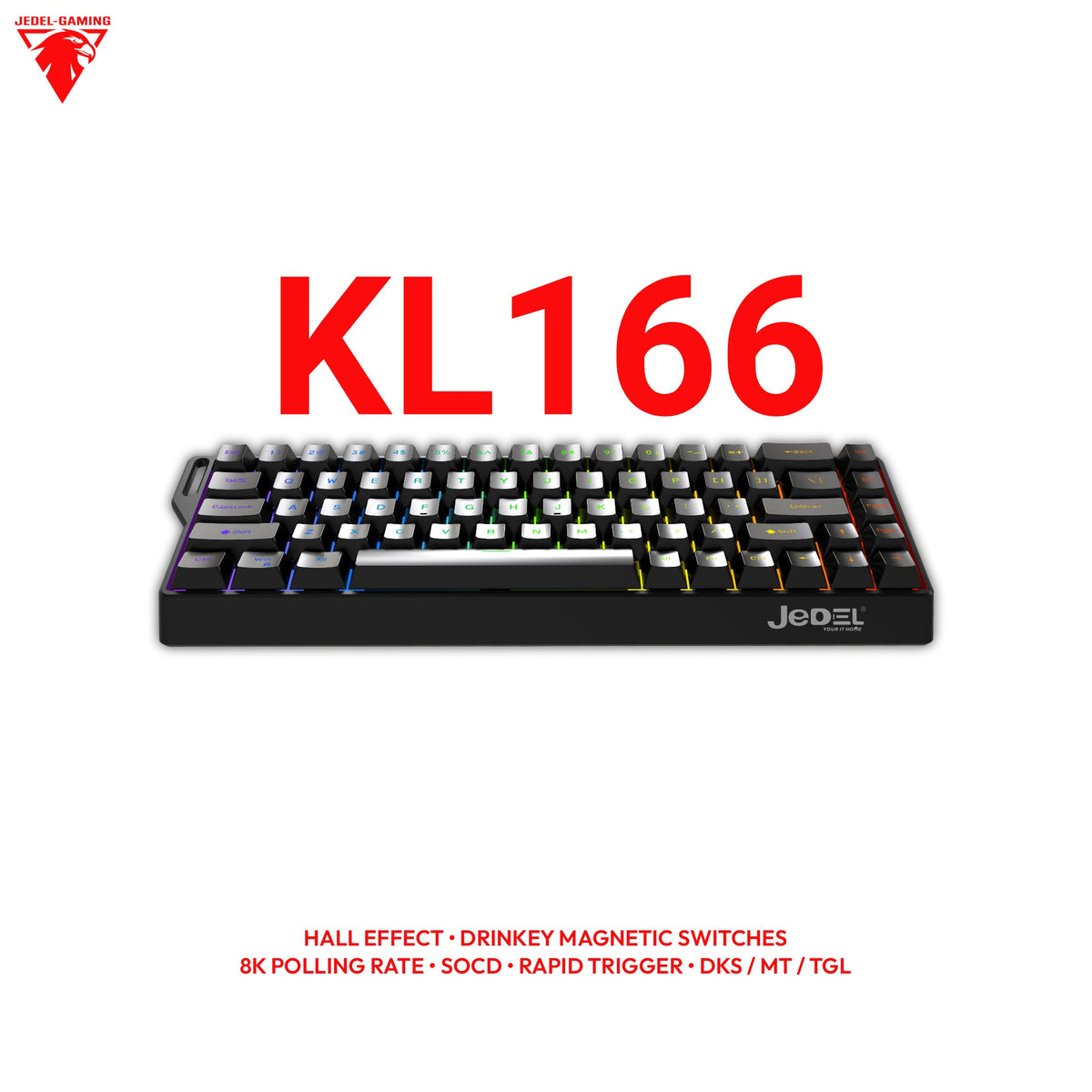

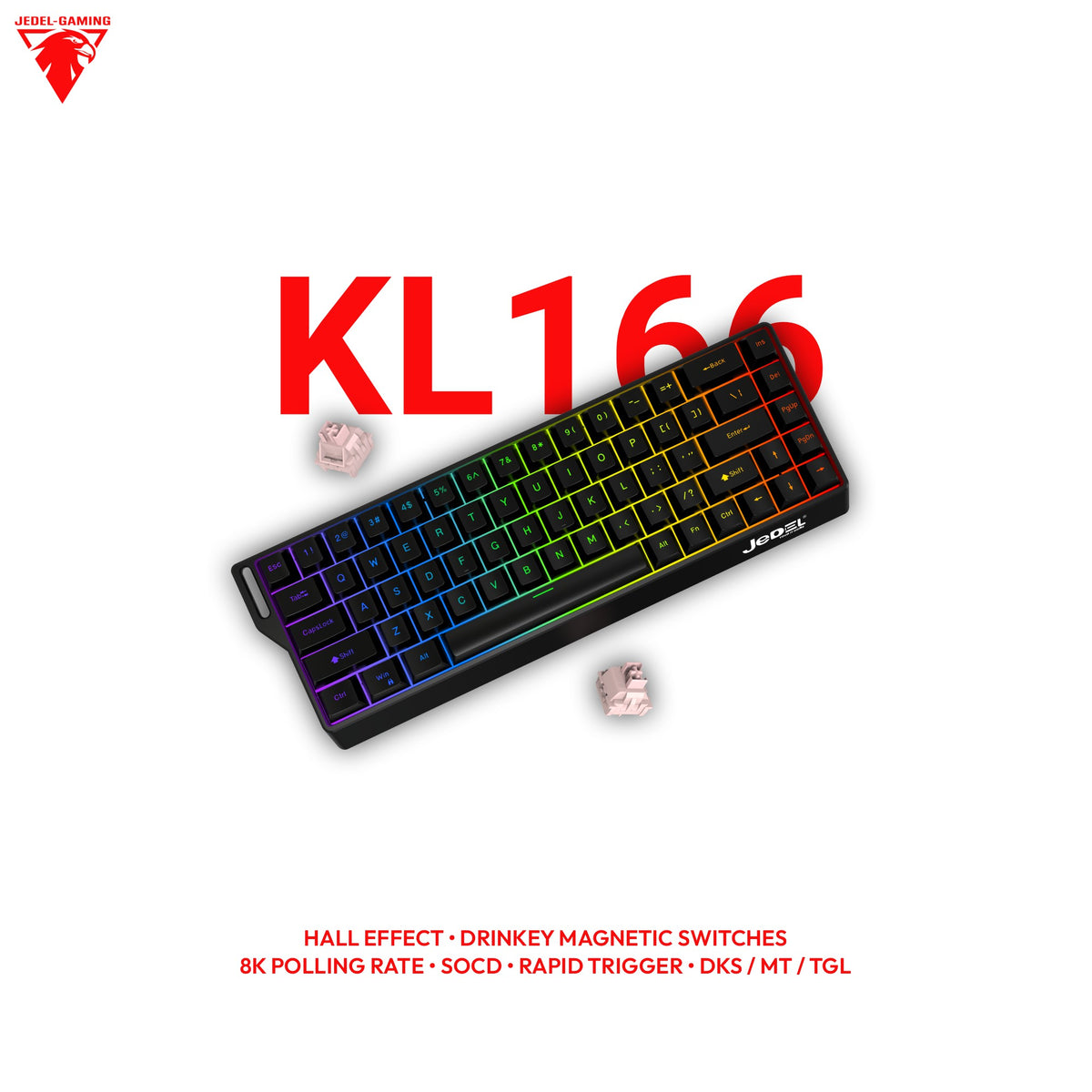

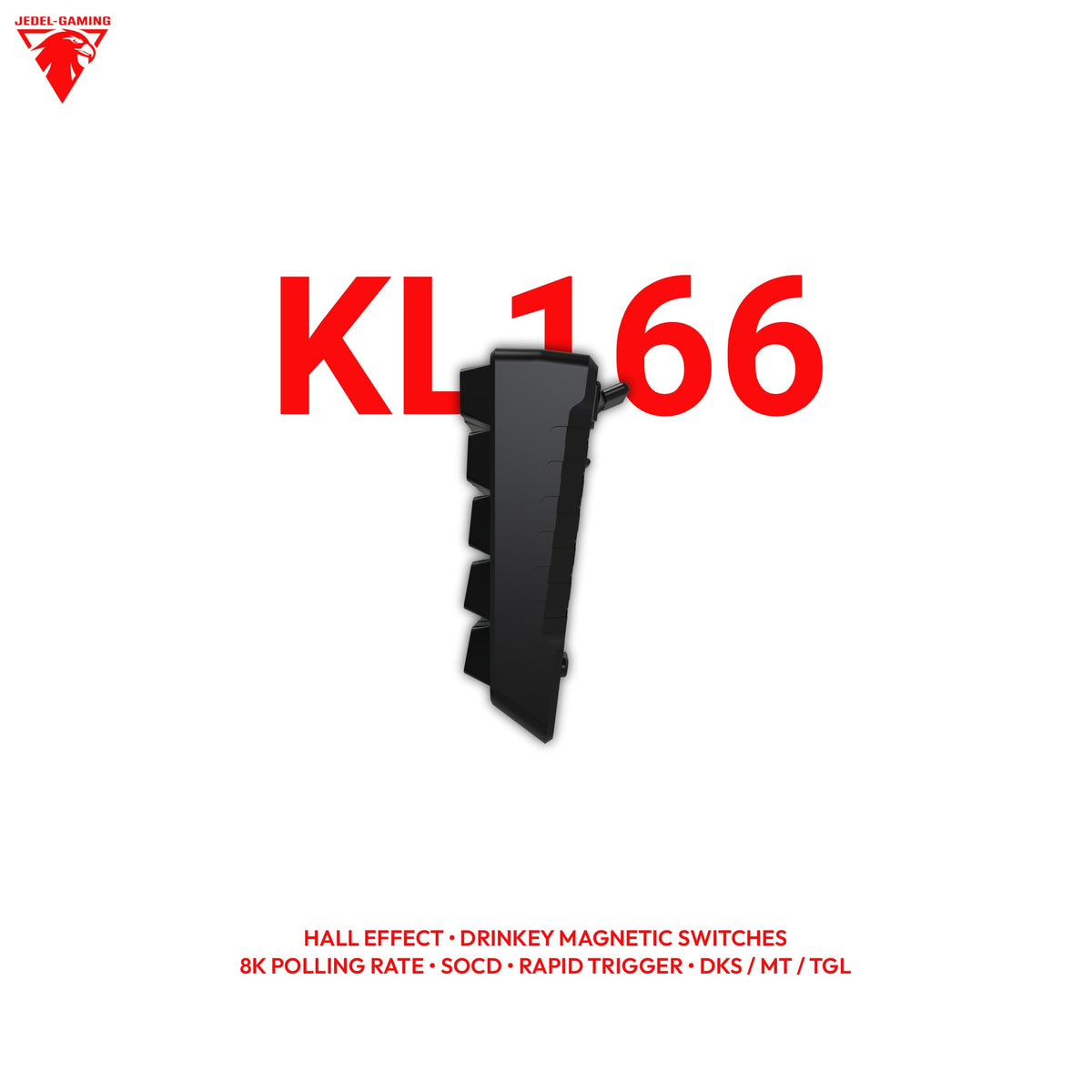

The Jedel KL166 is a 65% wired Hall Effect keyboard aimed squarely at the budget end of the market — a practical entry point for anyone who wants to experience magnetic switch technology without committing to a mid-range or premium price. It isn't a high-end keyboard and doesn't position itself as one. What it offers is the core Hall Effect experience — contactless actuation, adjustable sensitivity, and long-term switch durability — in a compact form factor with genuine real-world typing quality at an accessible price.
The switches are Jedel's own Philikey Magnetic switches, well-lubed from the factory. In practice, that makes the most meaningful difference to daily typing — the keystrokes are smooth and consistent, with none of the scratchiness or spring ping poorly-lubed budget switches typically show. The plate-mounted stabilisers are equally well-tuned for the tier, keeping larger keys quiet and rattle-free in a way noticeably better than the unmodded stabs found on many boards in this segment. Single-layer plate foam provides baseline sound dampening that keeps the acoustic profile from sounding completely hollow, even on an ABS tray-mount chassis.
The build is ABS plastic on a standard tray mount with a non-slotted PC plate — construction typical for the entry-level tier that reflects the price honestly. Per-key north-facing RGB illuminates the shine-through ABS keycaps with vivid colour, and the full HE feature suite — Rapid Trigger, SOCD, DKS, MT, TGL, and per-key adjustable actuation — is accessible through a web driver that also handles key remapping and macro programming, with no software install required and no OS lock. The USB connection routes through a daughter board connected via ribbon cable — a design detail worth knowing for anyone planning internal modifications.
For a first Hall Effect keyboard, a secondary board, or a budget daily driver where switch feel and stabiliser quality matter more than premium chassis materials, the KL166 delivers more than its price suggests on the keys that count.
🌟 Key Features
- Hall Effect Magnetic Switches (Philikey) — Contactless actuation, well-lubed from the factory for a smooth, consistent keystroke from the first press
- Full HE Feature Suite — Rapid Trigger, SOCD, DKS, MT, TGL, and per-key adjustable actuation
- No-Install Web Driver — Key remapping, macro programming, and HE configuration from any browser, no software install and no OS lock
- Well-Tuned Plate-Mounted Stabilizers — Quiet, rattle-free larger keys that outperform typical unmodded stabs in the budget segment
- Single-Layer Plate Foam — Baseline sound dampening that keeps the typing profile from sounding hollow
- Per-Key North-Facing RGB — Full per-key RGB with shine-through ABS keycaps for vivid colour
- 65% Compact Layout — Clean, minimalist footprint suited to smaller desks and gaming setups
- Daughter Board USB Connection — USB connector on a separated daughter board via ribbon cable
- 2× Spare Switches Included — Replacement switches in the box for quick swaps
⚙️ Specifications
| Brand | Jedel |
| Model | KL166 |
| Layout | 65% |
| Connectivity | Wired |
| Mount | Tray Mount |
| Plate | Non-Slotted PC |
| Dampening | 1-Layer Plate Foam |
| Switch | Philikey Magnetic (Hall Effect) — Factory Lubed |
| Stabilizers | Plate-Mounted — Pre-Tuned |
| Keycaps | ABS Shine-Through |
| LED | North-Facing Per-Key RGB |
| Case Material | ABS Plastic |
| HE Features | Rapid Trigger, SOCD, DKS, MT, TGL, Adjustable Actuation |
| USB Connection | Daughter Board (Ribbon Cable) |
| Software | Web Driver (Key Remap, Macros, HE Config) |
| Colour | Black |
| Box Contents | Keyboard, Ribbon, 2-in-1 Keycap Puller, 2× Spare Switches |
🎛️ Switch Specifications — Philikey Magnetic
| Switch | Philikey Magnetic (Hall Effect) |
| Operating Force | 30–45gf |
| Total Travel | 3.5mm |
| RT Range | 0.01mm |
| Initial Magnetic Flux | 150 GS |
| Bottom Magnetic Flux | 1400 GS |
| Housing | Upper: PC / Base: PA6 / Stem: POM |
💡 Honest Take
The KL166 is an ABS plastic tray-mount keyboard — the chassis feel and sound profile reflect that. If you're coming from a gasket-mounted or multi-layer-dampened board, the difference will be apparent. What it does well — smooth switch feel from factory lubrication, rattle-free stabilisers, and contactless Hall Effect actuation — punches above its price. For a first Hall Effect board or a budget second keyboard, the typing experience is genuinely better than the price might suggest.
🎯 Perfect For
- First-time Hall Effect buyers who want to try magnetic switches without premium pricing
- Budget-conscious gamers who want per-key RGB and a compact 65% with smooth factory-lubed switches
- Mac and Linux users who want a Hall Effect board they can actually configure, thanks to the browser-based driver
- Anyone curious about Hall Effect who wants the full feature set before investing in a higher-tier board
