Gateron KS-3X1 Milky Yellow Pro Tactile Heavy Switches – Pronounced 60gf Bump, Dual-Stage Spring, Milky RGB Housing | 5-Pin, Pack of 10
Gateron KS-3X1 Milky Yellow Pro Tactile Heavy Switches – Pronounced 60gf Bump, Dual-Stage Spring, Milky RGB Housing | 5-Pin, Pack of 10
Couldn't load pickup availability
Downloads
Downloads
Access the software and more at Nerdy Nest's driver center.
Shipping & Payment
Shipping & Payment
📦Standard Order Processing Steps
- You place an order on the website.
- Advance payment has to be made. (We no longer offer cash on delivery.)
- Share the transaction screenshot on our WhatsApp.
- We'll test (where applicable) and package the item(s) on camera. These recordings will be shared with you.
- We'll ship the product via TCS and the tracking code will be shared with you by the system via email. (Even for deliveries within Lahore, we use TCS.)
- Once you receive the order, please record an unboxing to ensure the package is not tampered by anyone during delivery. This also protects you as a customer.
Payments have to be done via Bank Transfer to one of our accounts. Once you check out, you'll be shown where to make the payment.
Warranty Policy
Warranty Policy
Warranty depends on the brand and the product itself. Read up on the detailed policy here.
The heavy tactile variant of Gateron's upgraded KS-3X1 Milky Pro series — a high-resistance 60gf bump felt clearly on every press, with a dual-stage spring, short 3.4mm travel, and a milky nylon housing for even RGB.
Read the full description

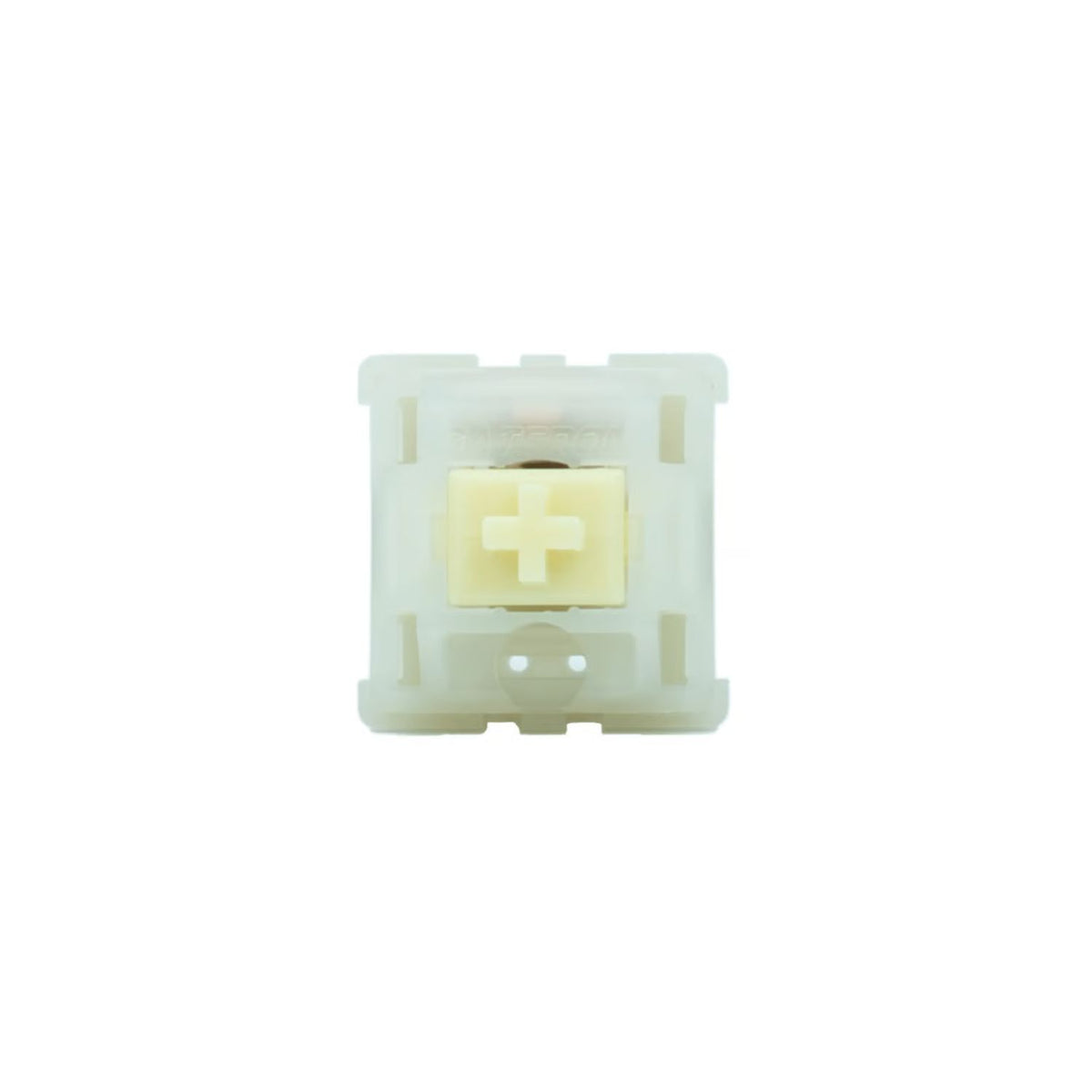

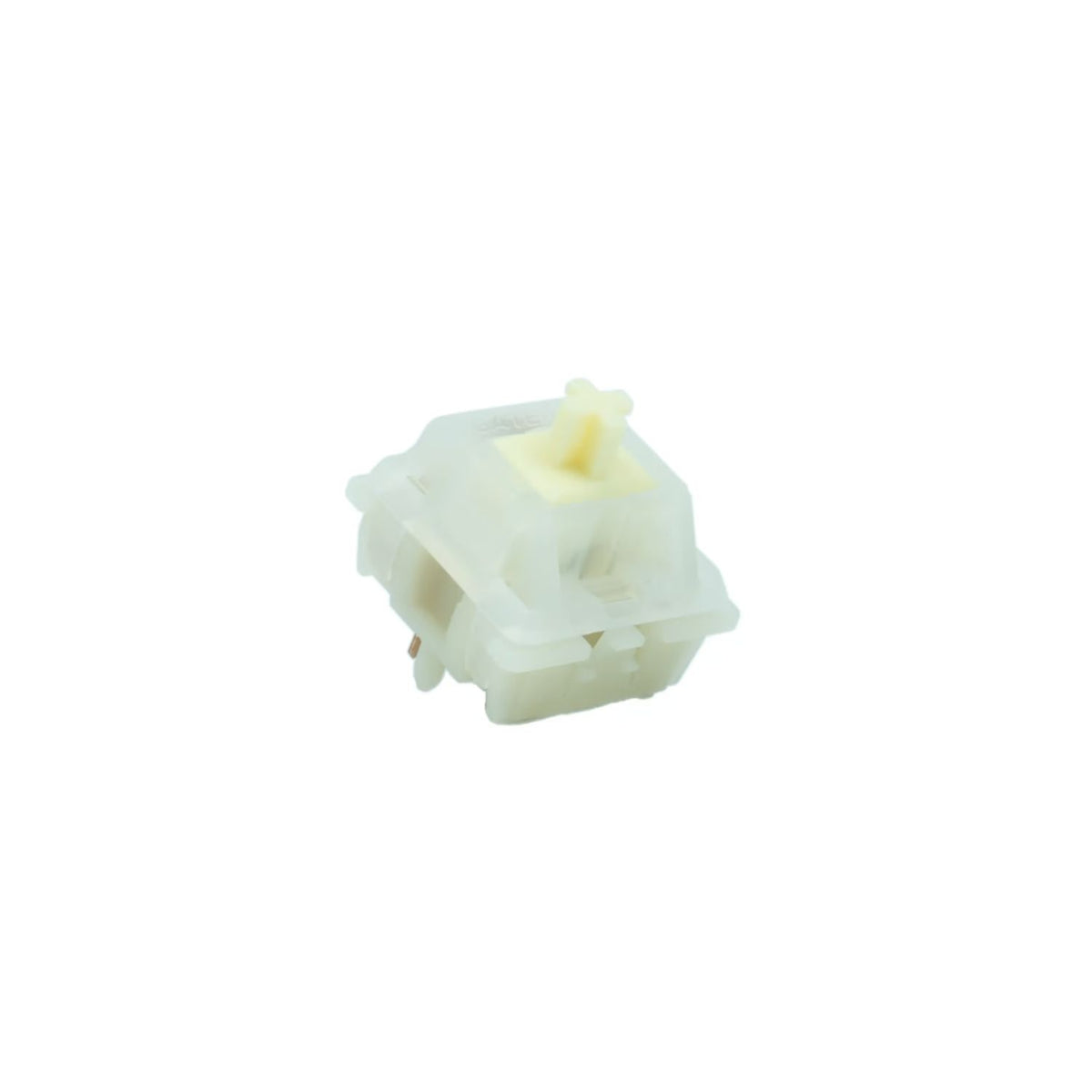

The Gateron KS-3X1 Milky Yellow Pro Tactile Heavy is the heavier tactile variant in Gateron's upgraded KS-3X1 Milky Pro series — a switch for typists who find standard tactiles too subtle and want a clearly defined, high-resistance bump that communicates each keystroke with real authority. At 60gf actuation across a compact 3.4mm total travel, it delivers tactile feedback that's felt rather than merely sensed, without the audible click that would make it unsuitable for quiet or shared environments.
The KS-3X1 series builds on the well-established KS-3 Milky Pro lineage with structural refinements aimed at tighter tolerances and the dual-stage custom spring that sets it apart from its predecessor. The dual-stage spring gives a two-phase force curve through the tactile event — lighter initial resistance before the bump, then a sharper force increase through and after it — which reinforces the definition of the tactile point and builds the heavier, more deliberate character that distinguishes this variant. Combined with the 2mm pre-travel and 3.4mm total travel, the stroke is shorter than a standard 4mm tactile while the bump itself is more prominent — a combination that suits heavy typists who prefer to feel the tactile event clearly on every press.
The milky nylon housing (top and bottom) is the same diffuser material that made the original Milky Pro a popular choice for RGB builds: the translucent white plastic scatters LED output evenly across the keycap for a soft, uniform glow without the hotspots and legend glare that fully transparent or opaque housings introduce. The POM stem adds a naturally low-friction surface that smooths the keystroke through and after the bump, and Gateron's factory lubrication covers the key contact zones to reduce friction noise and spring ping from the start. Reinforced internal alignment keeps stem wobble controlled across the stroke, and the 60-million-click rated life supports reliable long-term daily use.
The KS-3X1 Heavy Tactile is for users who've typed through lighter tactiles and found them underwhelming — a switch that earns its "heavy" classification and gives each keystroke a weight and presence that lighter options can't replicate.
🌟 Key Features
- 60gf Heavy Tactile Actuation — A high-resistance bump clearly felt on every keystroke — the variant for typists who want unmistakable feedback
- Dual-Stage Custom Spring — A two-phase force curve that sharpens the tactile event and reinforces bump definition beyond a single-stage spring
- Short 3.4mm Total Travel — Compact stroke depth for a faster, more resolved keystroke than standard 4mm tactiles
- Milky Nylon Housing (Top & Bottom) — Translucent white nylon for even, soft RGB diffusion without hotspots or legend glare
- POM Stem — Naturally low-friction stem that smooths the post-bump stroke and reduces housing contact noise
- Gateron Factory Lube — Applied at manufacture to reduce friction noise and spring ping across the keystroke lifecycle
- Reinforced Stem Alignment — Tighter housing tolerances reduce stem wobble for stable, consistent keystrokes
- KS-3X1 Upgrade Platform — Structural improvements over the KS-3 Milky Pro baseline for better consistency and feel
- 5-Pin Compatible — Fits all 5-pin hot-swap and soldered MX PCBs
- 60M-Click Rated Lifespan — Gateron-grade durability for sustained daily use
⚙️ Specifications
| Brand | Gateron |
| Model | KS-3X1 Milky Yellow Pro Tactile Heavy |
| Switch Type | Heavy Tactile |
| Pin Count | 5-Pin |
| Operating Force | 60gf |
| Pre-Travel | 2.0mm |
| Total Travel | 3.4mm |
| Stem Material | POM |
| Top Housing | Nylon (Milky) |
| Bottom Housing | Nylon (Milky) |
| Spring | Dual-Stage Custom |
| Lubrication | Factory Lubed |
| Rated Life | 60M Clicks |
| Compatibility | MX-Mount, 5-Pin & 3-Pin PCBs |
| Pack Size | 10 Switches |
💡 Which KS-3X1 Variant Is This?
The KS-3X1 Milky Pro series comes in three tactile characters. This listing is the Heavy Tactile — the highest-resistance variant with the most pronounced bump. If you prefer a lighter, more subtle tactile, look to the standard tactile variant; if you prefer no bump at all, the linear variant (Milky Yellow Pro) is also available.
📦 How Many Do I Need?
Switches are sold in packs of 10. As a rough guide: a 60/65% board needs ~68 switches (7 packs), a 75% ~84 (9 packs), a TKL ~87 (9 packs), and a full-size ~104 (11 packs). Buy a pack or two extra if you want spares.
✅ Genuine Gateron
Sourced directly from Gateron / official distribution — these are genuine Gateron KS-3X1 Milky Yellow Pro switches, not clones or relabels.
🎯 Perfect For
- Heavy typists who've tried standard or medium tactiles and found the bump too subtle for satisfying daily typing
- Enthusiasts who want a high-resistance tactile that communicates each keystroke clearly without clicky noise
- RGB build owners who want the even, diffused glow of a milky nylon housing without sacrificing a distinct tactile feel
- Builders upgrading from the original KS-3 Milky Pro who want tighter tolerances, a dual-stage spring, and a heavier tactile in the same housing format
