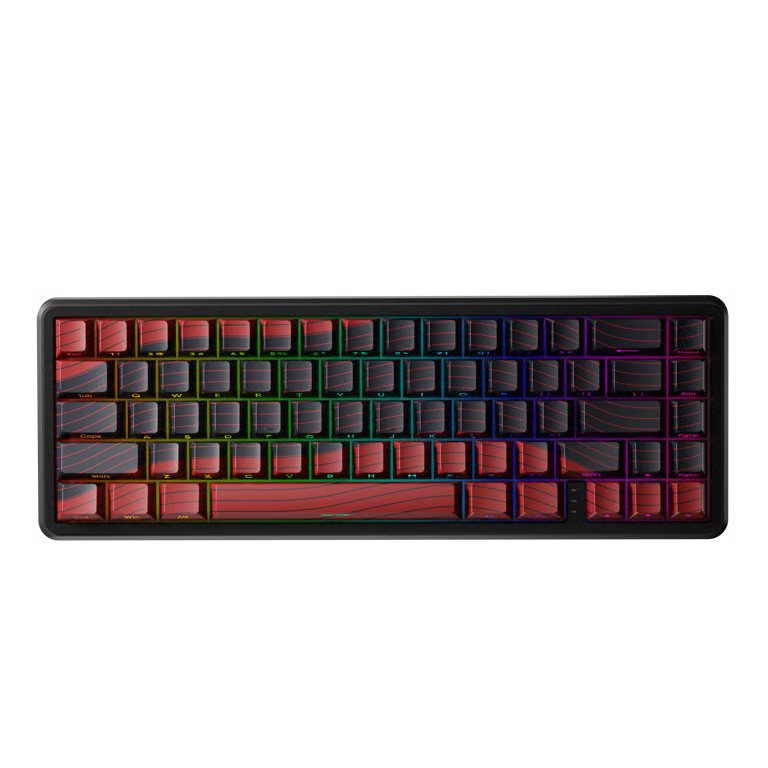

A 65% wired Hall Effect keyboard with a sandwich-mount aluminum-plate build, two-layer dampening, 0.01mm Rapid Trigger, and 40gf Space Magnetic switches — the vivid Red & Black IMD shine-through configuration.
Read the full description
The Eweadn Battle68 is a 65% wired Hall Effect keyboard built around a sandwich-mount structure with an aluminum alloy positioning plate, Poron plate foam, and a silicone base pad — a build that prioritises keystroke consistency, acoustic control, and structural rigidity in equal measure. This is the Red & Black IMD configuration: a visually expressive contour-design build with vivid shine-through RGB, paired with the finer 0.01mm RT precision tier.

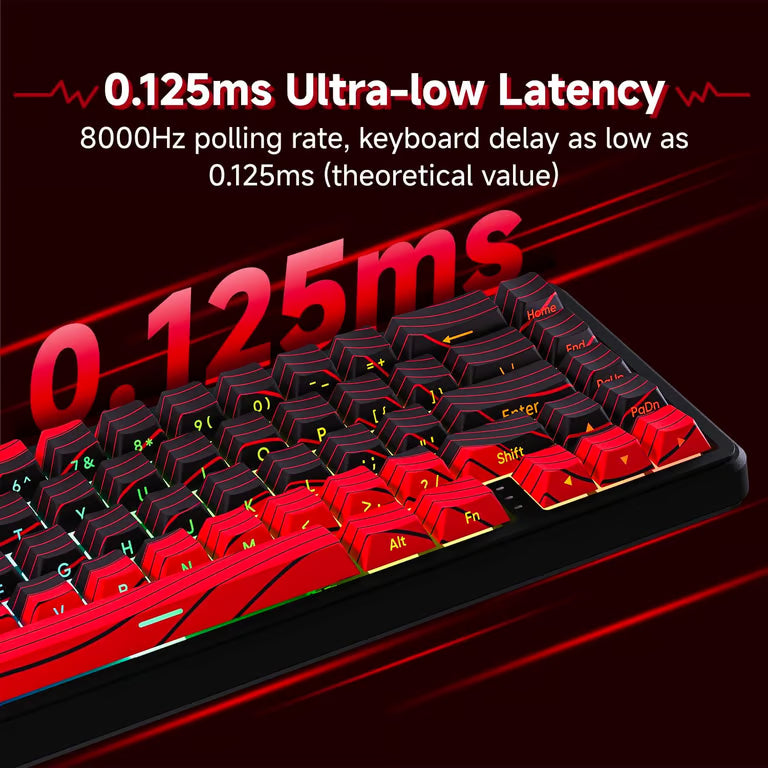

On input, the Battle68 delivers an 8000Hz polling rate, 0.125ms ultra-low latency, and Rapid Trigger with an adjustable 0.1–3.4mm range. The full competitive HE set — DKS, MT, TGL, and per-key adjustable actuation — is accessible through the web-based driver with no install, covering switch configuration, lighting, and key mapping from any browser. South-facing PCB LEDs with 16 million colours light the keycaps from the correct angle for Cherry and similar profiles, reducing legend bloom on shine-through caps.

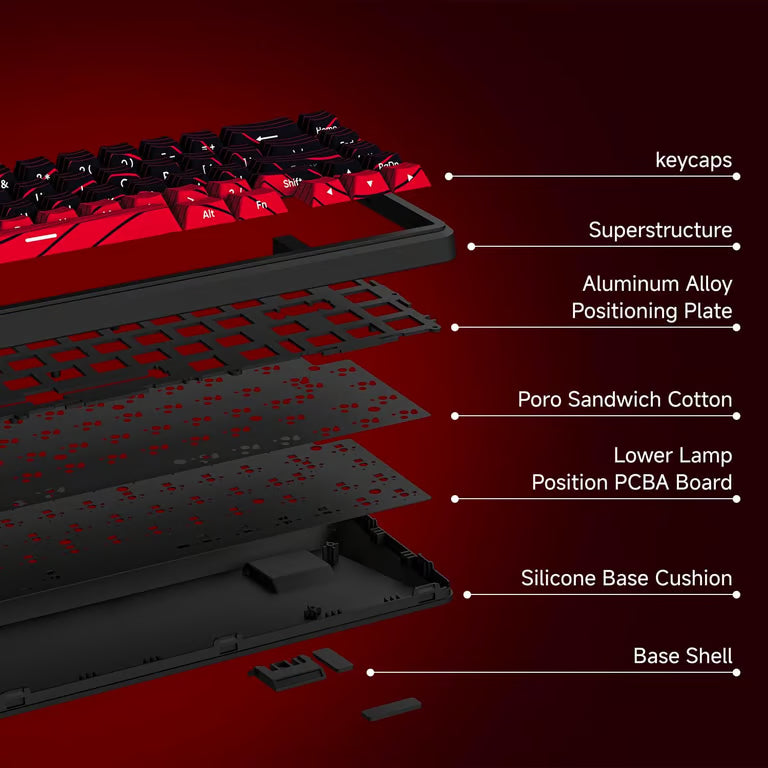

The sandwich-mount construction clamps the PCB between the top and bottom case halves through the plate, eliminating the top-mounted screw points that can create uneven key feel across the board. Combined with the Poron plate foam — a material known for consistent density and sound absorption across temperature ranges — and the silicone base pad, the Battle68 produces a controlled, muted sound profile that keeps the aluminum plate's firm key feel without the metallic resonance unpadded aluminum builds often carry.
This variant runs Space Magnetic switches — a 40gf linear HE switch with a 90GS–550GS flux range, 0.01mm RT accuracy, and a built-in light guide column that maximises LED output through the shine-through keycaps. The black-and-red contour-line keycaps with side-printed shine-through legends and an IMD surface treatment give the board a visual identity that works as well under RGB as it does in ambient light — most vivid when the lighting is running.
🌟 Key Features
- Sandwich Mount Structure — PCB clamped between case halves through the plate for even key feel across all positions
- Aluminum Alloy Positioning Plate — Firm, precise key support with controlled resonance when paired with the dampening stack
- Poron Plate Foam + Silicone Base Pad — Two-layer dampening for a muted, controlled profile without softening the keystroke
- 8000Hz Polling / 0.125ms Latency — Competitive-grade input speed with near-zero perceptible delay
- Rapid Trigger (0.1–3.4mm Adjustable, 0.01mm Accuracy) — Fine per-key RT precision for competitive play
- Full HE Feature Suite — DKS, MT, TGL, and per-key adjustable actuation
- Space Magnetic Switches — 40gf actuation, 90–550GS flux range, 0.01mm RT accuracy, with a light guide column for vivid RGB
- South-Facing PCB LEDs (16M Colours) — Correct-angle illumination for clean legend readability with reduced bloom
- IMD Contour Keycaps, Shine-Through — Black-and-red side-printed caps that come alive under RGB
- Web-Based Driver — No-install key mapping, lighting, and HE configuration from any browser
⚙️ Specifications
| Brand | Eweadn |
| Model | Battle68 |
| Layout | 65% |
| Connectivity | Wired Only — USB-C |
| Mount | Sandwich Mount |
| Positioning Plate | Aluminum Alloy |
| Dampening | Poron Plate Foam + Silicone Base Pad |
| Polling Rate | 8000Hz |
| Latency | 0.125ms |
| RT Range | 0.1–3.4mm |
| RT Accuracy | 0.01mm |
| HE Features | Rapid Trigger, DKS, MT, TGL, Adjustable Actuation |
| Switch | Space Magnetic |
| Operating Force | 40gf |
| Flux Range | 90GS (Initial) – 550GS (Bottom) |
| Light Guide Column | Yes |
| Keycaps | IMD Contour Design — Side-Printed Shine-Through (Black/Red) |
| Lighting | South-Facing PCB LEDs — 16M Colours |
| Colourway | Red & Black IMD |
| Driver | Web-Based (No Install Required) |
| Box Contents | Keyboard, Dust Cover, USB-C Cable, 2-in-1 Puller, Spare Switches, Manual |
🎯 Perfect For
- Competitive gamers who want a wired 65% Hall Effect board with sandwich-mount construction and full RT/HE feature access
- Enthusiasts who want an aluminum-plate keyboard with proper acoustic dampening, without the hollow resonance of unpadded metal
- Users who want 0.01mm RT precision paired with vivid RGB through shine-through keycaps
- Anyone after a fully-featured wired HE 65% with a web driver, dust cover, and spare switches in the box
